Visual automatic recognition of cutting path;
Visual appearance inspection function after cutting;
Discharging can be connected to automated testing, Robot and other workstations;
Transplanting axis can rotate 0-180° to achieve mirroring, fork plate, OK, NG product screening and tray stacking functions.
Single transfer is flexible in application. It can be set to pick and place PCBA at 0-180 degrees to meet the needs of front-end and back-end process docking.
Self-feeding, cutting, milling cutter replacement, finished product discharge, waste collection, fully automated production operations.
Finished product discharge can be selected from belts, tracks, and fixtures.
CCD visual alignment compensation correction to ensure cutting accuracy.
High-speed ESD automatic tool change spindle is used to automatically discharge static electricity generated during the board separation process to reduce damage to PCBA caused by static electricity.
Patented floating brush structure can perform segmented deepening of milling cutters.
6HP high-suction dust collector, equipped with negative pressure detection to remind cleaning filter bags.
Windows 10 operating system. Software automatic development, continuous function upgrades.
Equipped with high-speed CCD vision automatic calibration system.
Can simulate cutting paths to assist in program programming, ensuring cutting path accuracy.
Combined with full-board scanning and offline programming functions, it enhances path editing efficiency.
Imported high-speed, high-precision spindle.
Low cutting stress, smooth edges, and high precision.
High-precision spindle speed: 80,000 rpm/min
With over 30 years of independent software development, the PCB depaneling machine uses self-developed software, ensuring stability and reliability, and preventing board damage caused by bugs.
The PCB depaneling machine uses an integrated welded design structure, ensuring stability and high strength.
It is made of cast aluminum with a one-piece molding process, offering excellent oxidation resistance, no deformation, no displacement, long service life, and guaranteed precision.
Adopt High-Power Dust Collector
Dust Filtration with HEPA Grade
Equipped with Negative Pressure Detection, providing real-time alerts for dust collection status
Equipped with Floating Brushes (Invention Patent No. ZL201721620742.X) to enhance dust collection efficiency
Optional Central Control System: Unified management and real-time monitoring via network IP.
Remote Device Unified Management: Remote monitoring via mobile app.
Items | GAM336AT | GAM336AL |
Cutting Range | 350*300mm | 450*420 mm |
Processing Table | Dual tables | |
Cutting Function | Straight, L-shaped, U-shaped, Circular, Arc | |
Cutting Speed | 1-100mm/s Adjustable | |
Feeding Method | Track conveyor | |
Unloading Method | Belt conveyor or track conveyor(Option) | |
Transfer Method | Vacuum Suction Nozzle for Transfer | |
Flow Direction | Left to Right or Right to Left | |
Machine Repetition Accuracy | ±0.01mm | |
Cutting Accuracy | ±0.05mm | |
Spindle speed | MAX: 80000rpm Adjustable | |
Spindle Router bit Change Method | Automatic Tool Change | |
Router bit detection | Automatic Tool Breakage Detection | |
Operating System | Windows 10 | |
Program Teaching Method | CCD Image Intuitive Teaching Input | |
Control Method | Precision Multi-Axis Control System | |
XYZ Axis Drive Method | AC Servo Motor | |
Applicable Router bit size | ∮0.8-3.0mm | |
Power Requirement | AC220V 50/60HZ 4Kw Single phase (1Φ) | |
Air Source Requirement | 0.6MPa, 170L/min (standard with five vacuum generators) | |
Demensions | 1647*1814*1820mm | 1947*2096*1820mm |
Weight | 835KG | 1145KG |
Standard dust collector | TS300L(Upper dust collector) | TS300L(Upper dust collector) |

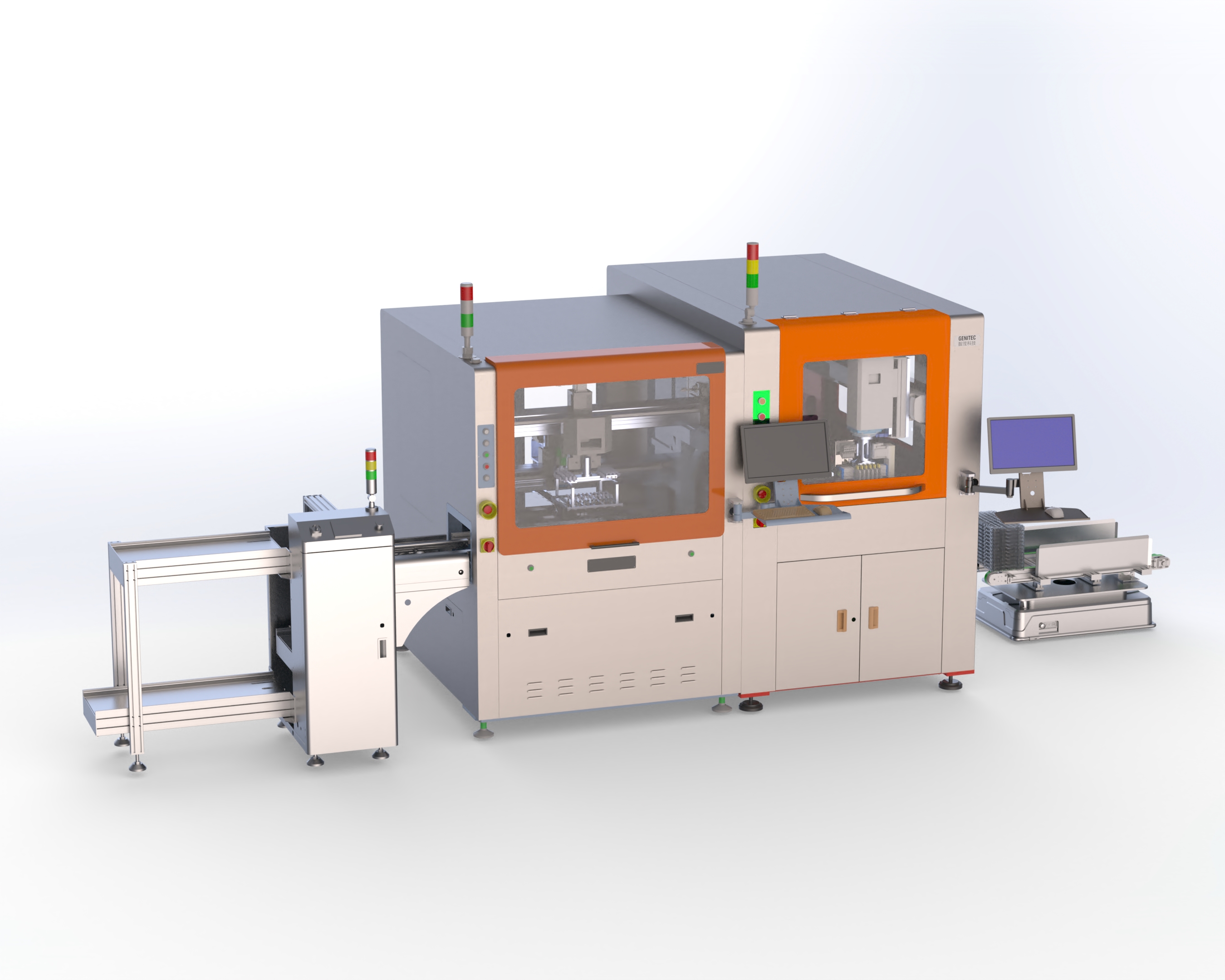

Automatic board loading machine + GAM336AT Inline CCD vision PCB board depaneling machine + sorting and placing machine + AGV handling whole line case
