Genitc/Seprays brand milling cutter board splitter has a wide variety of types, as follows:
Offline milling cutter board splitter

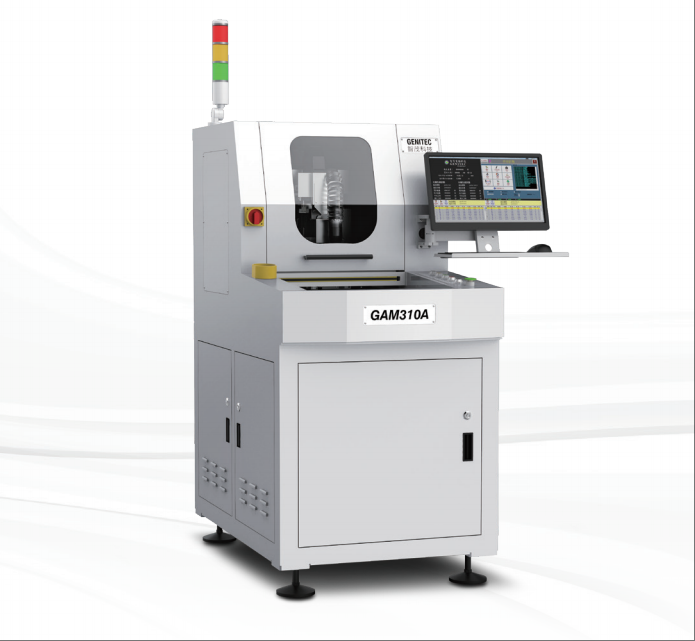

- Single-station milling cutter board splitter GAM310A:
Suitable for small-scale production scenarios or places with high space requirements, compact structure, easy operation, suitable for small batches, multiple types of PCB board slitting needs.

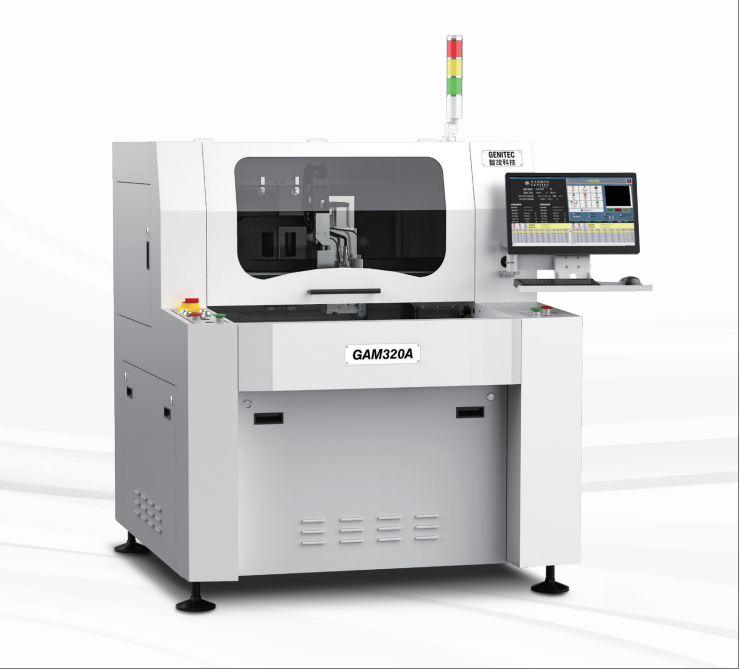

- Offline PCB board splitter GAM320A:
With automatic board splitting function, it can be used for the slitting of various PCB boards. It may have certain advantages in board splitting accuracy and speed. It is suitable for general-scale production enterprises and can meet the common PCB board splitting process requirements.

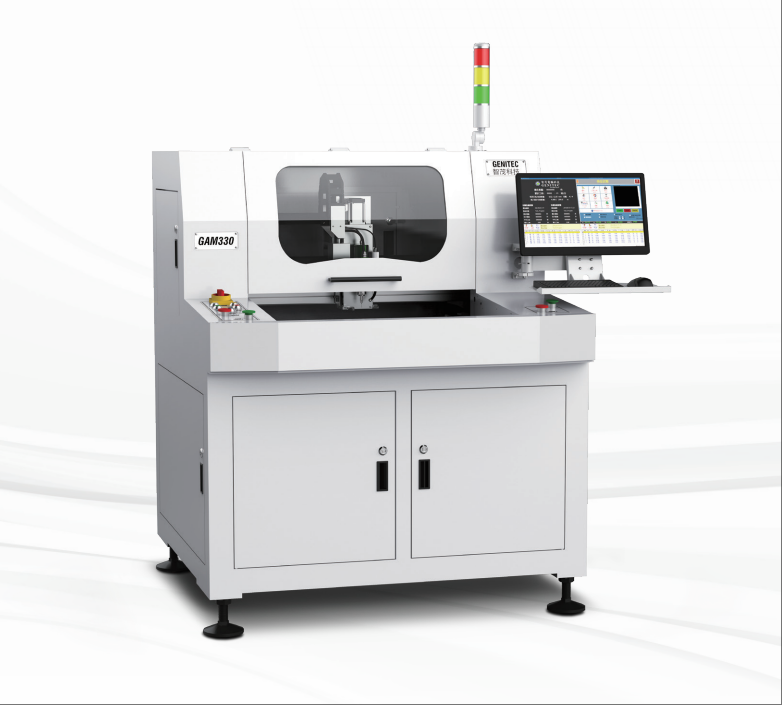

- Offline PCB board splitter GAM330:
There are different sizes, such as GAM330 (300*350mm), GAM330L (450*500mm), GAM330X (470*650mm). It can be selected according to PCB boards of different sizes to meet the slitting needs of large or special-sized PCB boards. It is often used in large-scale circuit board production or occasions with high requirements for circuit board size compatibility.

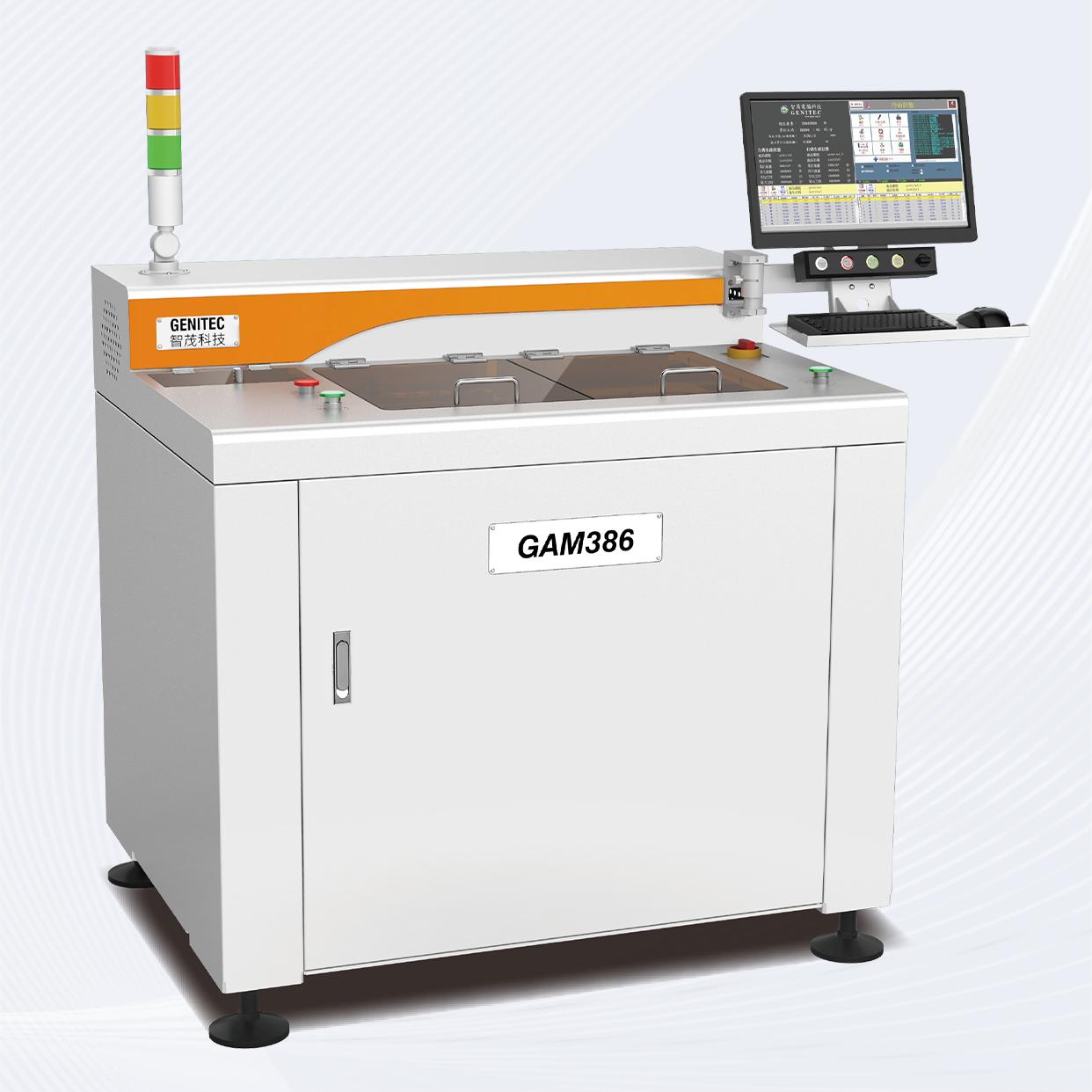

- Bottom-cut PCB milling cutter splitter GAM386: Suitable for slitting high-component PCB boards of various complex shapes. The bottom-cut method can avoid damage to the components on the surface of the circuit board. In the electronics manufacturing industry, it is widely used in the production of products that require high circuit board integrity and component protection, such as aerospace, medical electronics and other fields.

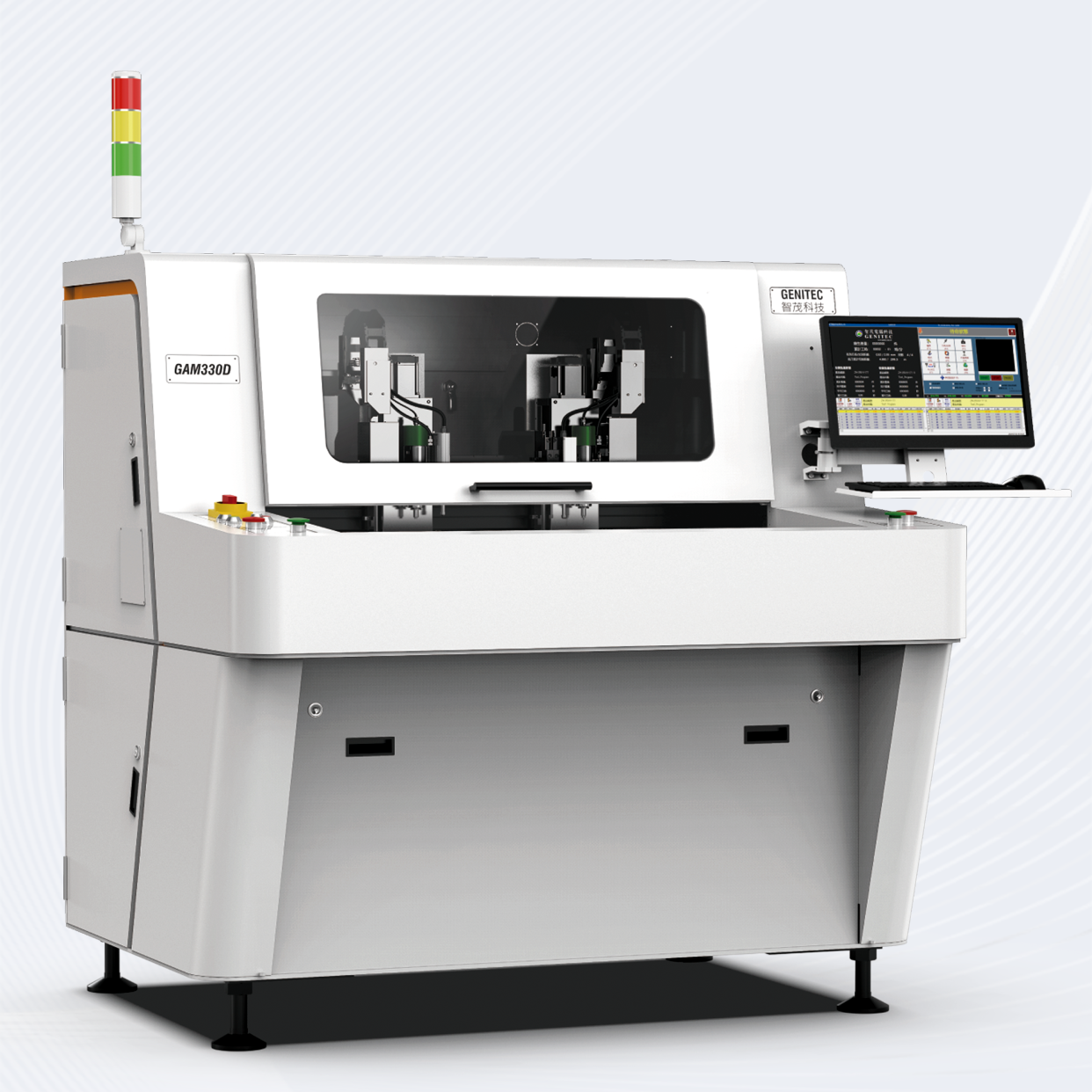

- Dual-spindle milling cutter splitter GAM320D/GAM330D: It adopts a dual-spindle design and can perform splitting operations at the same time, doubling the production capacity. It is suitable for large-scale production enterprises with high production efficiency requirements. It can complete the splitting tasks of a large number of PCB boards in a short time, effectively improve production efficiency and reduce production costs.
Online milling cutter splitter
- Online PCB milling cutter splitter GAM320AT/GAM330AT: It can be seamlessly connected with the SMT production line to realize the automated production process. It has automatic loading and unloading functions, can quickly and accurately split PCB boards, and is suitable for electronic manufacturing production lines with a high degree of automation, which can effectively improve production efficiency and product quality stability.

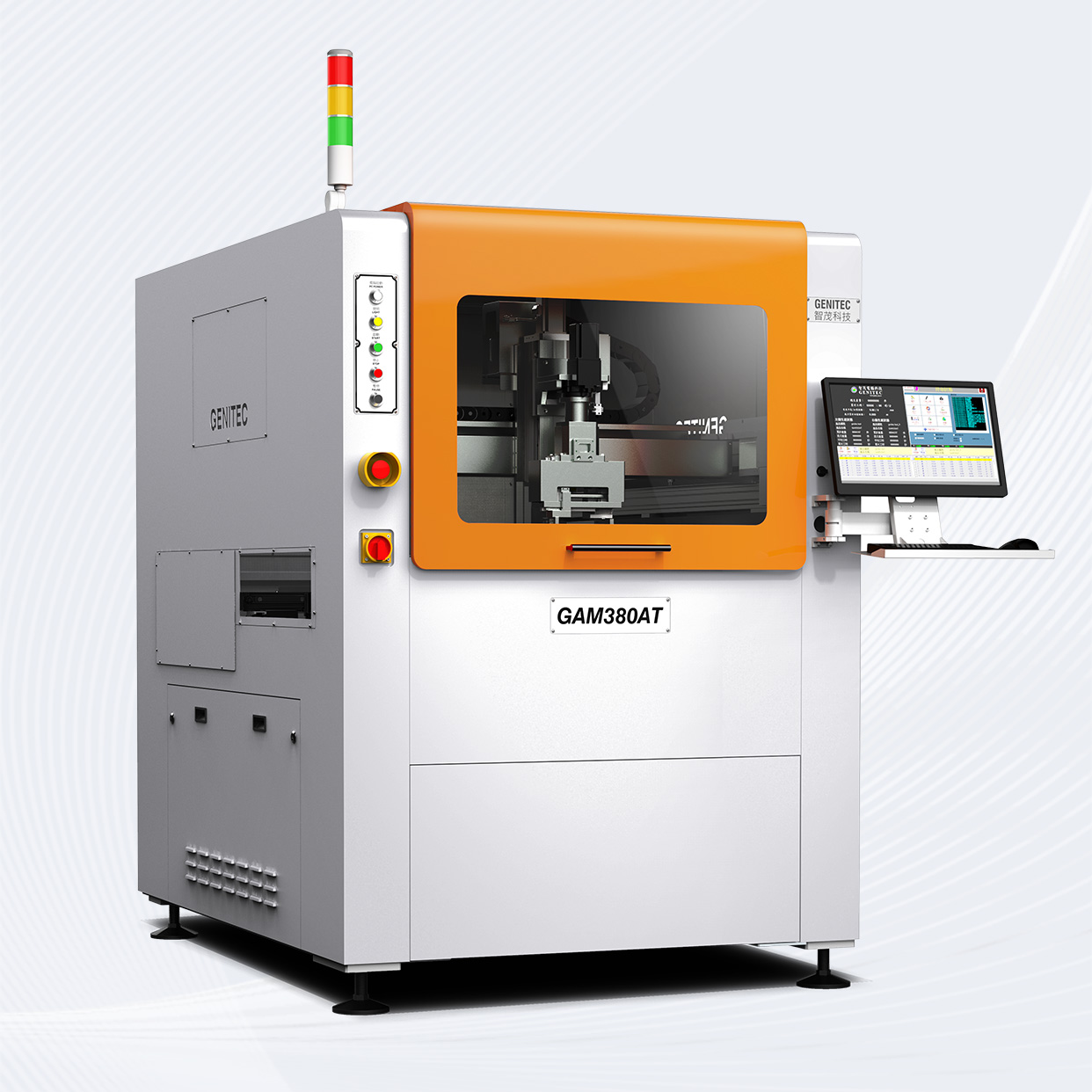

- Online jig-free (bottom-cut) PCB splitter GAM380AT: Suitable for automotive electronics, medical, military and other fields. No jig is needed. The board is split by bottom-cutting, which solves the problem of fast line change and production conversion, saves the cost of tooling and jig production, and also improves the flexibility and efficiency of production. It can adapt to the fast switching production of different product models.

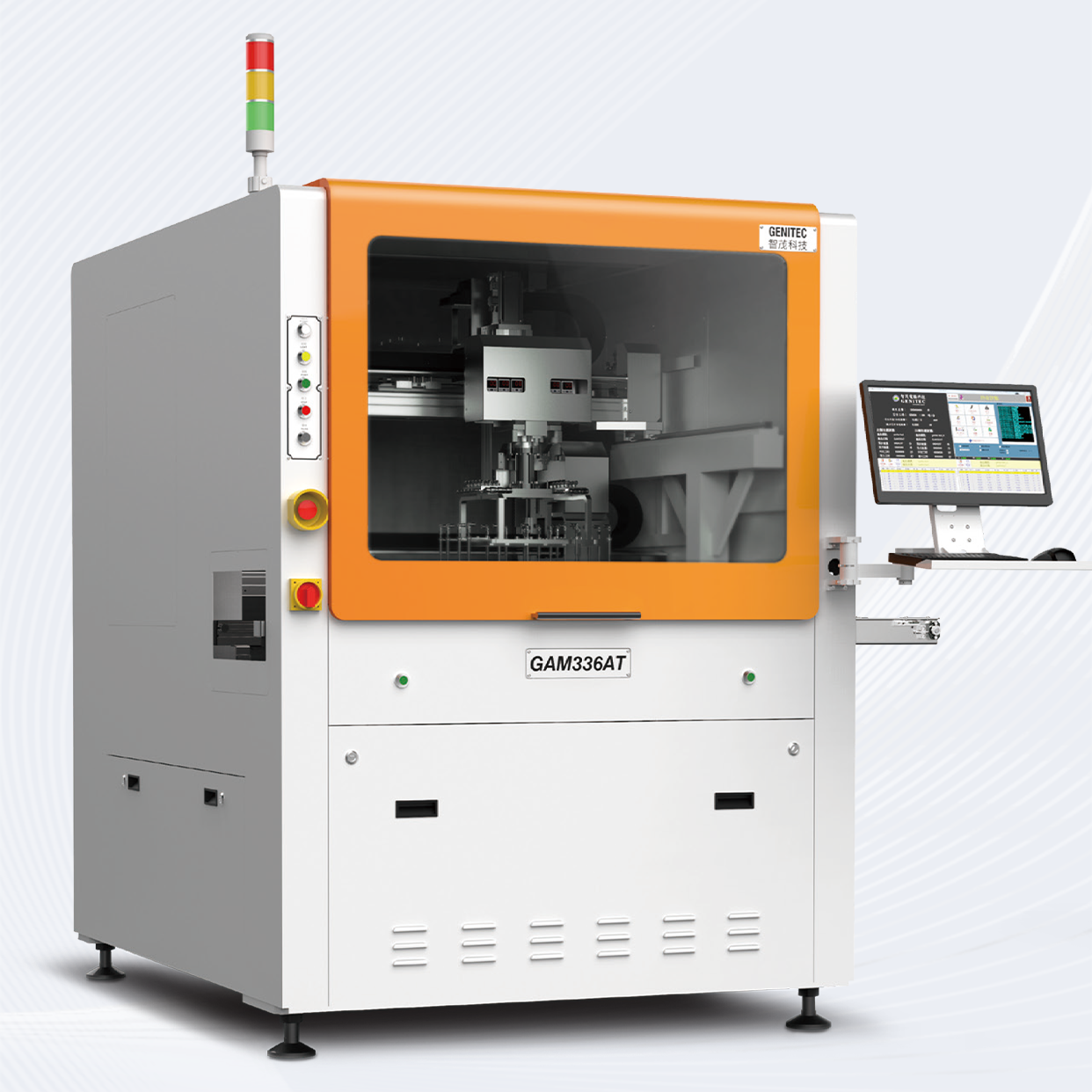

- Online single-transplant PCB splitter GAM336AT: The material can be connected to the automated test, Robot and other stations, and the transfer axis can rotate 0-180° to realize the mirror, fork, OK, NG product screening and tray stacking functions. It has strong flexibility and scalability on the automated production line, and can be customized according to different production needs to meet the diverse production process requirements.

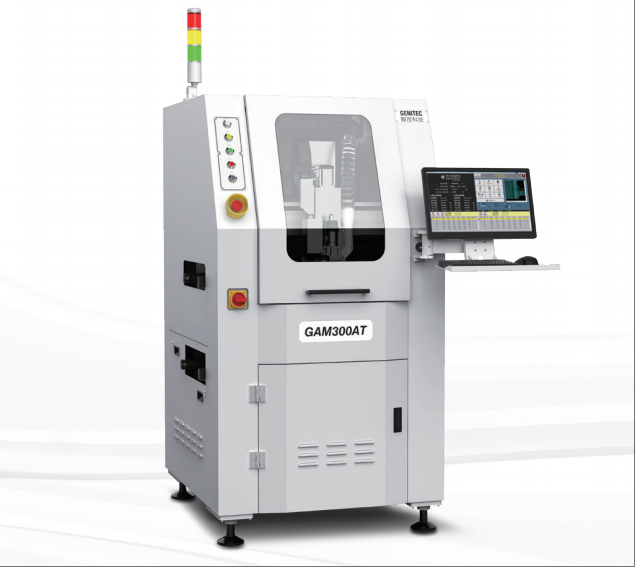

- Online carrier reflow PCB splitter GAM300AT: It adopts double-layer track and carrier reflow design, which can realize the automatic production of the whole line, effectively improve the production efficiency and consistency of product quality, reduce manual intervention, and is suitable for large-scale, high-yield electronic manufacturing production lines. It can realize the continuous flow and slitting of PCB boards on the production line, and improve the automation and production efficiency of production.
- Online dual-spindle PCB splitter GAM330AD/GAM336AD: The dual-spindle structure design has higher production efficiency and can cut two PCB boards at the same time, further improving the production capacity of the online splitter. It is suitable for large-scale electronic manufacturing companies with extremely high production efficiency requirements and can meet high-intensity production needs.
If you need technical parameters of specific models or customized PCB depaneling solutions, you can further provide application scenarios and PCB process requirements to accurately match the PCB depaneling machine equipment selection.
