ESD static protection
Equipped with a super vacuum cleaner
Specialized mobile phone board, small PCB board splitter
Effective cutting size 200*180mm
Reduce the cost of making large fixtures
Reduce cycle time, improve production efficiency, and increase production capacity
Configure esd spindle to prevent electrostatic damage to PCBA caused by milling cutter cutting process
Equipment length within 840mm, small footprint, saving production line space
Configure inlet/outlet dual transfer head design, transfer cycle<12s
Equipped with high-speed CCD vision automatic calibration system.
Can simulate cutting paths to assist in program programming, ensuring cutting path accuracy.
Combined with full-board scanning and offline programming functions, it enhances path editing efficiency.
Imported high-speed, high-precision spindle.
Low cutting stress, smooth edges, and high precision.
High-precision spindle speed: 80,000 rpm/min
The patented floating brush reduces stress during cutting
Allowing the milling cutter to be used in multiple stages and extending its lifespan
Maintenance time can be set.
Time to clean the dust filter bag.
The system will remind operators to perform maintenance on the equipment regularly.
By adding a laser height measurement module, the height of the PCBA when placed into the fixture can be checked to ensure it is correct, preventing cutting deviation and damage during the depaneling process due to improper placement of the PCBA or small debris inside the fixture.
With over 30 years of independent software development, the PCB depaneling machine uses self-developed software, ensuring stability and reliability, and preventing board damage caused by bugs.
| Items | GAM310AT |
| Valid cutting size | 200*180mm |
| Cutting Function | Tweening to straight line,circle and Are |
| Process table | Dual tables |
| Repeat precision | ±0.01mm |
| Cut precision | ±0.05mm |
| Loading method | Track convey |
| Unloading method | Conveyor or Track convey |
| Spindle speed | MAX80,000RPM |
| Spindle change method | Auto-tool change |
| Program teaching mode | Intuitive teaching by CCD color image input |
| Cut speed | 1-100mm/s |
| Milling bit size | 0.8-3.0mm |
| Pneumatic pressure requirment | 0.6MPa，，，，，，，160L/min |
| Dust Collector | TS300L |
| Cut spindle size(W*D*H) | 1005*1450*1750mm |
| Voltage/Power requirement | AC220V，，，，，，，1phase,50/60HZ，，，，，，，4KW |
| Weight | 600KG |

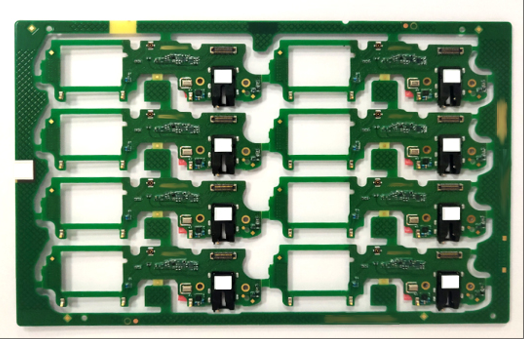

GAM310AT cuts the mobile phone PCBA board as shown below:
