With the continuous development of industrial automation technology, offline PCB separators are gradually failing to meet the modern production line’s demands for high efficiency, precision, and intelligence. Therefore, upgrading offline PCB separators to online application solutions has become a key step in enhancing production efficiency and product quality. Below is the upgrade plan for the existing production line:
1. Overview of the Offline PCB Separator Upgrade to an Online Application Solution

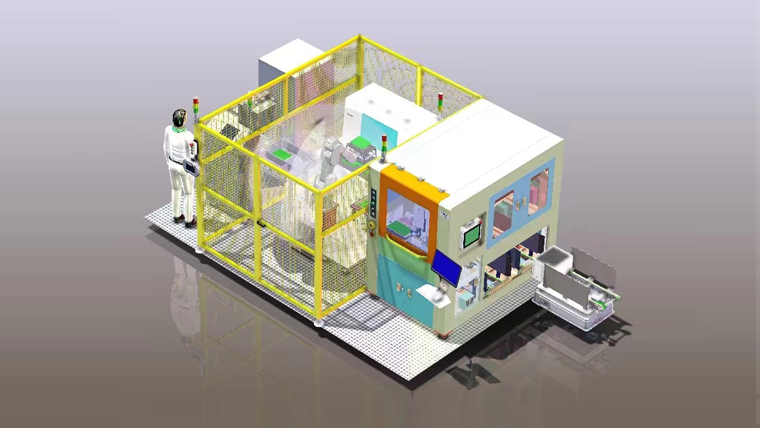

The existing Zhimao offline PCB separator will be upgraded to an online system, and robots will be introduced to replace manual loading and unloading operations. Additionally, an automatic sorting and stacking machine, along with an AGV transportation system, will be integrated. The specific upgrade content includes:
Offline PCB Separator Upgrade: Upgrade the Zhimao offline PCB separator to an online separator, allowing seamless integration with other devices on the production line, enabling an automated production process.
Robot Introduction: Robots will be introduced after the separation process to handle the extraction of PCB boards from the upper machine and place them into the separator, as well as to take out the separated PCB boards and place them into the stacking machine. This will completely replace manual loading and unloading tasks.
System Integration and Optimization: The entire production line will undergo system integration and optimization to ensure that all equipment can work efficiently and stably together, achieving full automation of the production process.
2. Features of the Upgraded Production Line
Safety: Safety barriers will be installed to prevent any potential injuries to personnel.
Cost Savings: Savings on the purchase of online PCB separators, and by adding robots to the offline separator, labor costs will be reduced.
Efficiency: The introduction of robots and online separators will significantly increase the automation level of the production line, reducing human intervention and greatly improving production efficiency.
Precision: Both robots and online separators are equipped with high-precision positioning and operational capabilities, ensuring accurate PCB cutting and sorting, thereby improving product quality.
Flexibility: The production line is designed to be flexible, allowing quick adjustments to equipment and process flows based on production needs, catering to multi-variety, small-batch production requirements.
Intelligence: By implementing an Industry 4.0 MES system, intelligent management and monitoring of the production line will be achieved, enhancing its stability and reliability.
3. Applicable Industries
Electronics Manufacturing: Including consumer electronics such as mobile phones, computers, tablets, automotive electronics, medical equipment, LED lighting, and communication equipment manufacturing.
High-tech Industries: Including aerospace, military electronics, and other sectors that require high precision, reliability, and stability for their products.
In conclusion, upgrading the offline PCB separator to an online application solution and introducing robots to replace manual loading and unloading operations will significantly increase the automation level and production efficiency of the production line. This provides enterprises with a competitive edge in the fiercely competitive market.
